No-tools intelligence adjustment device for quick adjusting the excitation force: top force wheel for the horizontal excitation force and bottom force wheel for vertical excitation force.
Qucik-release clamp ring for fast replacement of screen, and the whole screen-replacement only takes 3-5 minutes.
Specially-designed and durable, suitable for most powder and liquid materials
Few downtime, easy for replacing screen, grease-free and quick for exciting force adjustment
Lean production, high quality spares, strict insepction ensure a long service life.
This vibrating screener is fully enclosed, no matrial leakage phenomena
The specially designed clampes helps to replace the screen quickly
Long service life, SKF bearing for motors, and grease-free
Easy for adjustment of the lead angles and exciting forces
Ultrasonic vibrating screen prevents blocking and blinding
when processing ultra-fine materials
Please check some of the frequently asked questions below, other further questions you may have, please donot hesitate to contact us. We’d love to hear from you!

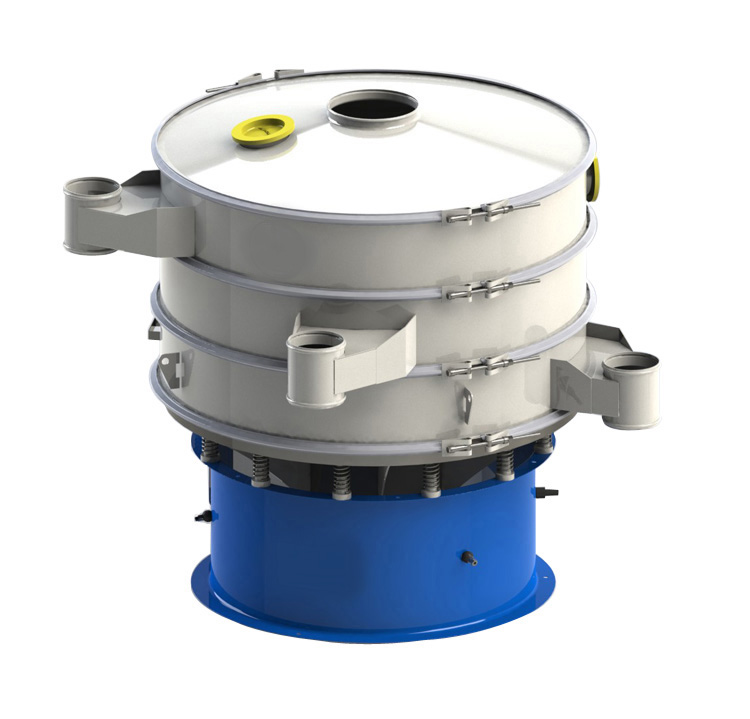

S49A is an upgrade version of normal 3D rotary vibrating screen, adopt the disc intelligent adjustment device,
the upper disc have specific scale, we can adjust the scale, which decides material spread speed from the middle to the periphery.
The lower disc is 360 degree scale, we can adjust the degree, which decides the exciting force and the speed of material discharge.
1. Shut off the power.
2. When replacing just one spring, tilt side of the table tray where the spring is located by using a lift. Lift high enough to slide bottom of defective spring out of unit.
3. Check spring seat. If an excessive amount of wear is shown, then replace the seat.
4. Install new spring or seat and lower table tray.
1. Shut off the power.
2. Loosen the clamp ring to remove the top cover. 3. Take out the worn screen and remove the gasket, then the center tie-down assembly located above the worn screen.
3. Replace the new screen, install the gasket also the center tie-down assembly.
4. Install the top cover and fastern the clamp ring.
For solving the mesh-blocking problems, we have the silicone bouncing balls, PU sliders, water spray system also ultrasonic cleaning systems.
